ServiceNow Automation: A Comprehensive Guide for IT Administrators

ServiceNow automation empowers IT administrators to eliminate repetitive tasks, improve service delivery, and reduce operational overhead. With the right use of ServiceNow's powerful automation tools, organizations can drive consistency, improve SLAs, and free up resources for high-value tasks.

‍

This guide is designed for IT admins with working knowledge of ServiceNow. It covers key automation capabilities, provides technical walk-throughs, highlights best practices, and showcases how automation can transform IT operations.

‍

What Is ServiceNow Automation?

‍

ServiceNow Automation refers to the platform’s ability to perform tasks, workflows, and processes with minimal or no human intervention. It encompasses:

• Flow Designer – Visual, low-code tool for building automated flows.
• Business Rules – Server-side scripts triggered by database operations.
• Scheduled Jobs – Automated tasks executed at defined intervals.
• Script Includes – Advanced scripting capabilities.
• IntegrationHub – Automate across external systems.
• RPA Hub – Robotic Process Automation to interact with legacy systems.

Each of these tools plays a distinct role in streamlining operations while allowing customization to match business needs.

‍

Why Automation Matters in ServiceNow

‍

‍

According to community feedback and case studies, organizations that fully use ServiceNow automation often report a 20–40% reduction in ticket resolution time and higher end-user satisfaction.

‍

Core Automation Tools in ServiceNow

‍

Flow Designer

‍

Flow Designer is ServiceNow’s low-code automation tool. It lets admins create workflows that respond to triggers like form submissions, updates, or external API calls.

‍

Key Features:

• Natural language actions
• Reusability through subflows
• Integration with external systems via spokes
• Data pills for dynamic values

Steps:

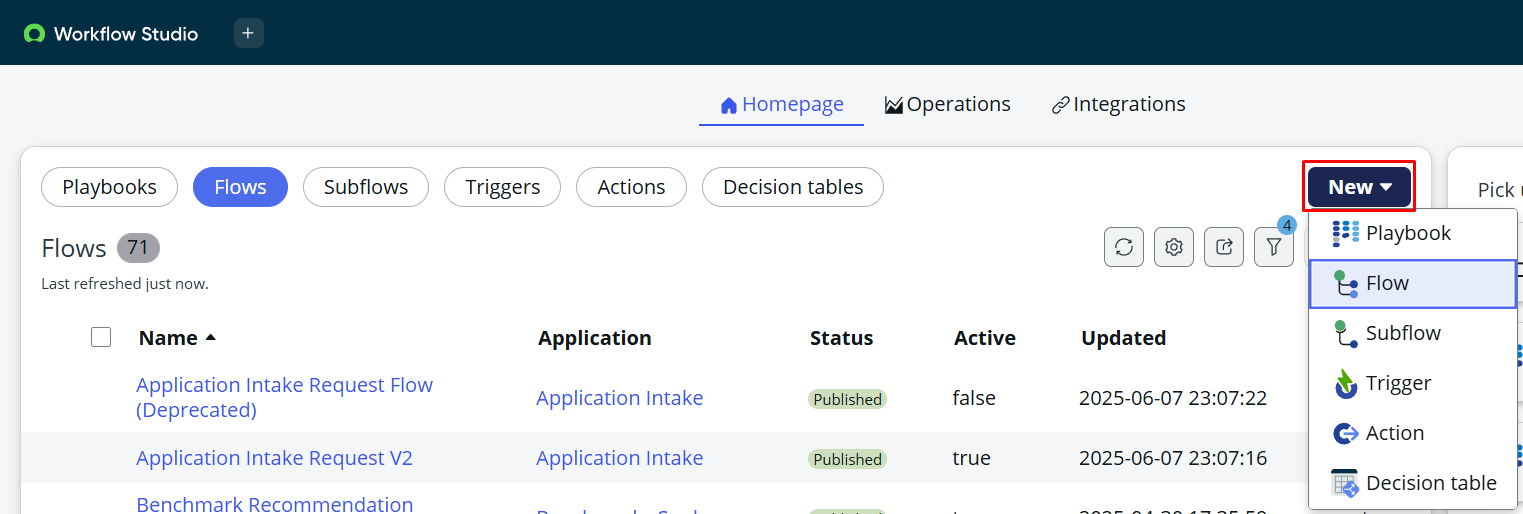

1. Navigate to Process Automation > Flow Designer
2. Click on the “New” button at the top. Select the tool you want to use.

‍

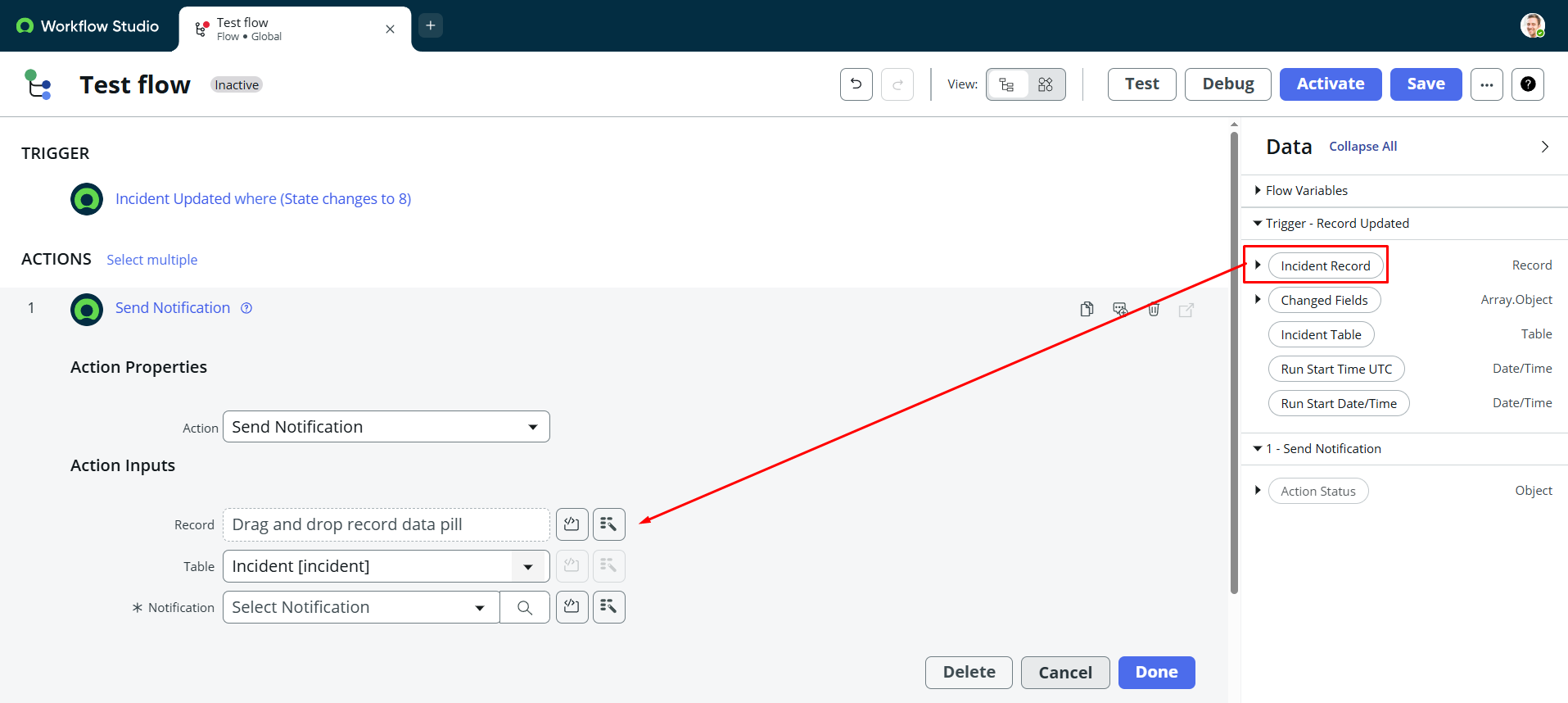

3. Add Trigger: defines when a flow starts and the starting data available to it.

‍

4. Add Actions: are reusable elements that perform repeatable operations.

‍

5. You can add Data Pills that are created each time an action is added to a flow.

‍

6. Click Activate to publish.

‍

Business Rules

‍

Business Rules are server-side scripts executed before or after database operations such as insert, update, or delete. They're ideal for enforcing logic close to the data layer.

‍

Steps:

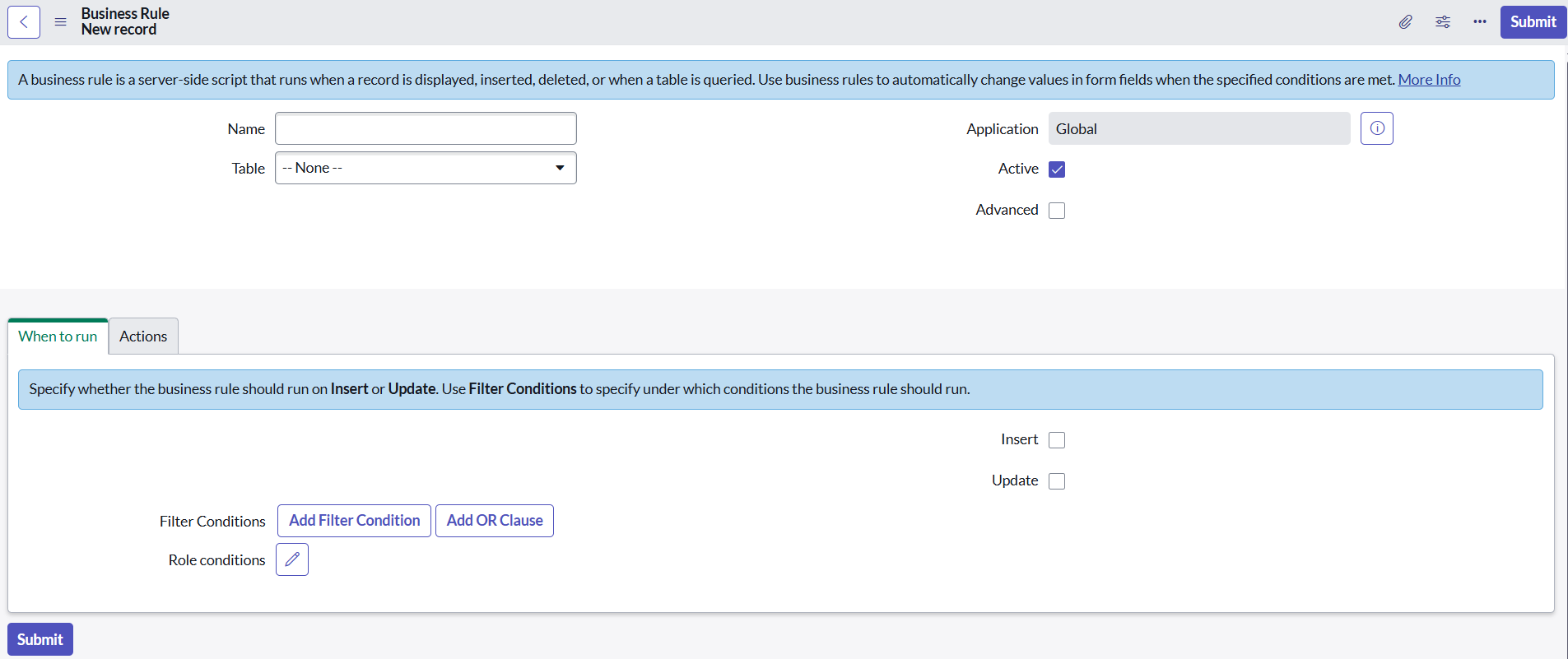

1. Go to System Definition > Business Rules > New
2. Set the table (e.g., Incident).
3. Choose timing: Before/After/Async.
4. Write conditions and server-side script logic.
5. Save and test.

‍

Scheduled Jobs

‍

Scheduled Jobs allow you to run scripts on a time-based schedule, ideal for data clean-up, alerts, or recurring integrations.

‍

Steps:

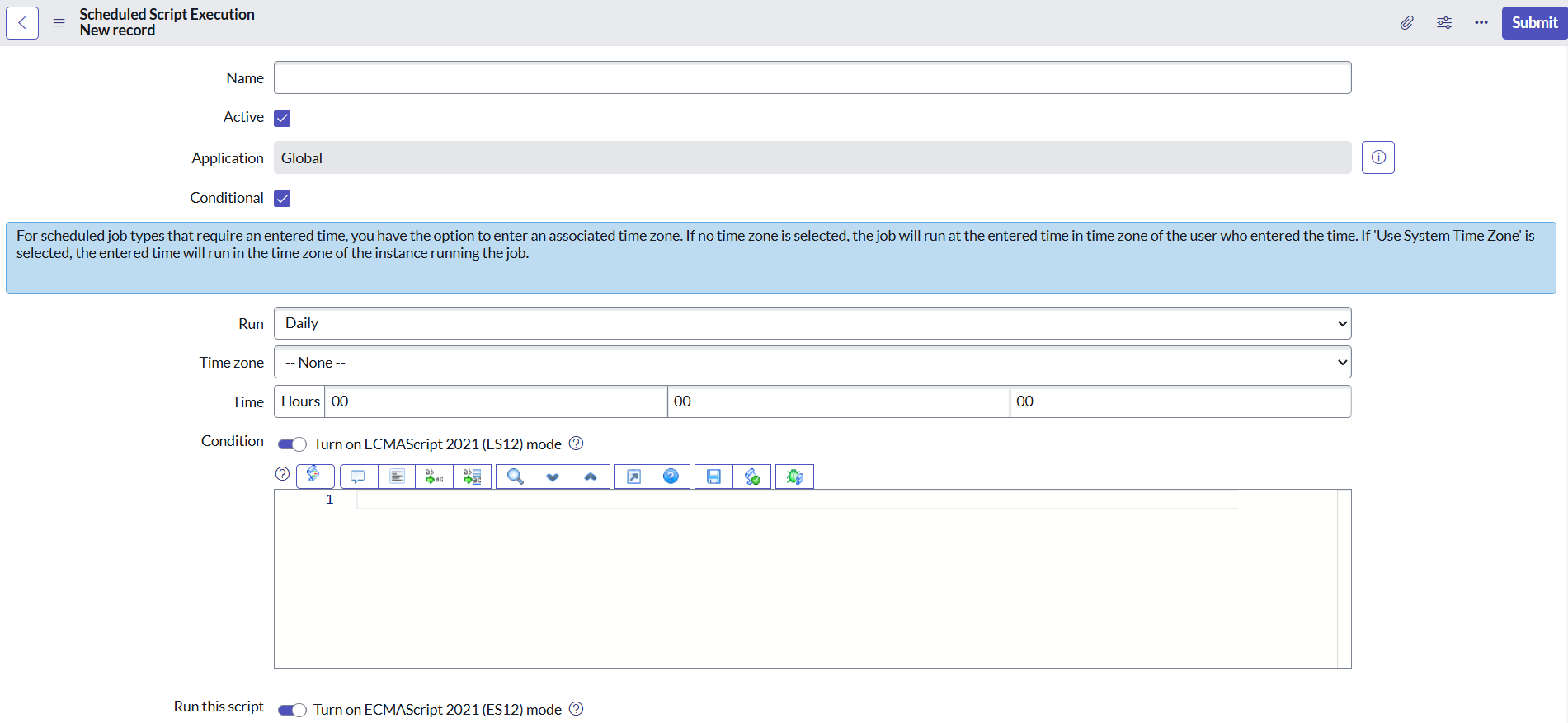

1. Go to System Definition > Scheduled Jobs > New

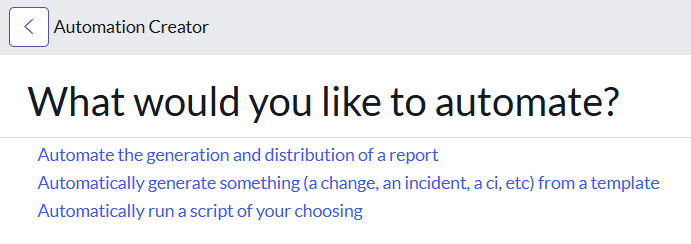

2. Select what you would like to automate.

3. Choose job type: Run a Script, Run a Report, etc.

‍

4. Set schedule, timezone, and conditions.

‍

5. Add script logic or link to a defined flow.

‍

Script Includes

‍

Script Includes lets developers define reusable server-side JavaScript that can be invoked by Business Rules, Flows, or REST endpoints.

‍

Steps:

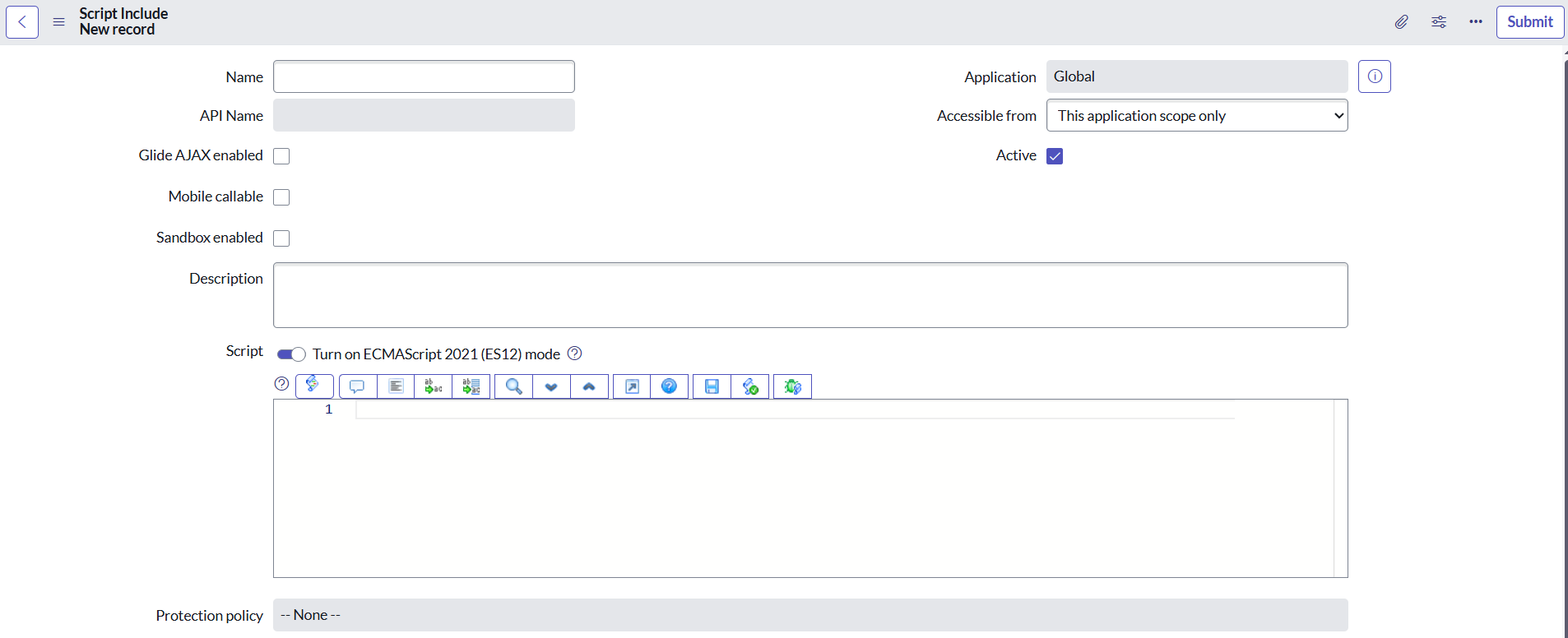

1. Go to System Definition > Script Includes > New
2. Name your script and define access settings.
3. Write JavaScript code in the script editor.
4. Mark as “Client Callable” if needed for client-side scripts.

‍

IntegrationHub

‍

IntegrationHub connects ServiceNow to external platforms (e.g., Microsoft Teams, Slack, Jira, or AWS) using reusable connectors called Spokes.

‍

Steps:

1. Go to IntegrationHub > Flow Designer or IntegrationHub > Connections & Credentials to set up and manage integrations.

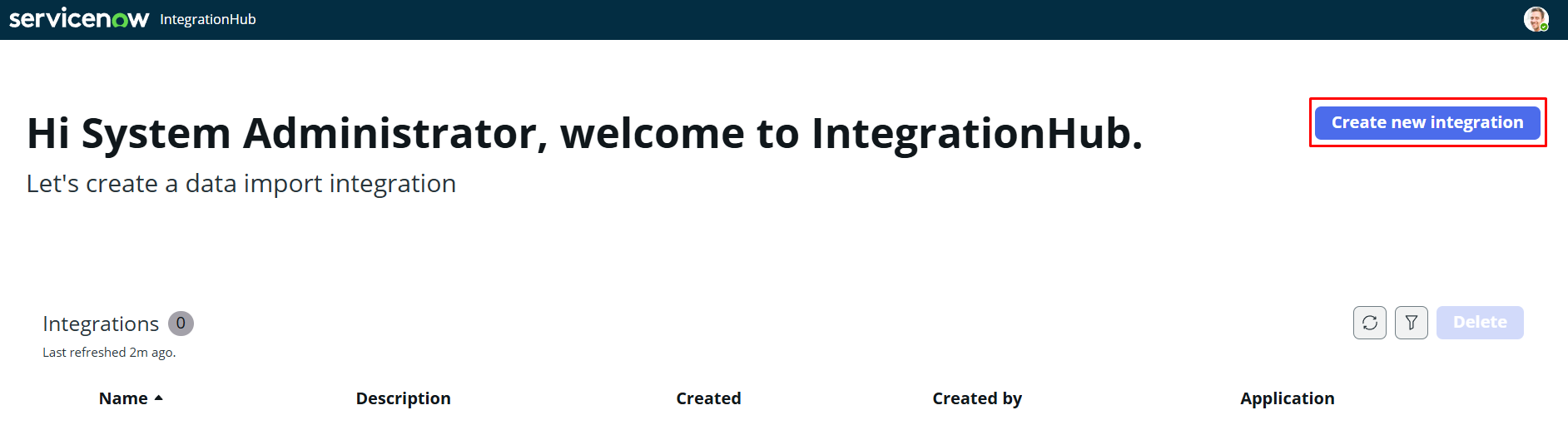

2. Select Create new integration.

‍

3. Choose a spoke or create custom logic.

‍

4. Provide connection details (API keys, credentials, etc.).

‍

5. Test the connection and activate.

‍

RPA Hub

‍

Robotic Process Automation (RPA) allows you to automate tasks on legacy systems without APIs.

‍

Steps:

1. Install Plugin:
   • Navigate to System Applications > All Available Applications > All.
   • Install RPA Hub Foundation (sn_rpa_fdn) plugin, ensuring you have the required licensing enabled for RPA capabilities.
2. Set Up RPA Environment:
   • Configure the Bot Runner environment.
   • This typically includes a Windows machine with a browser, ServiceNow agent, and RPA Desktop Agent installed.
3. Create RPA Bots:

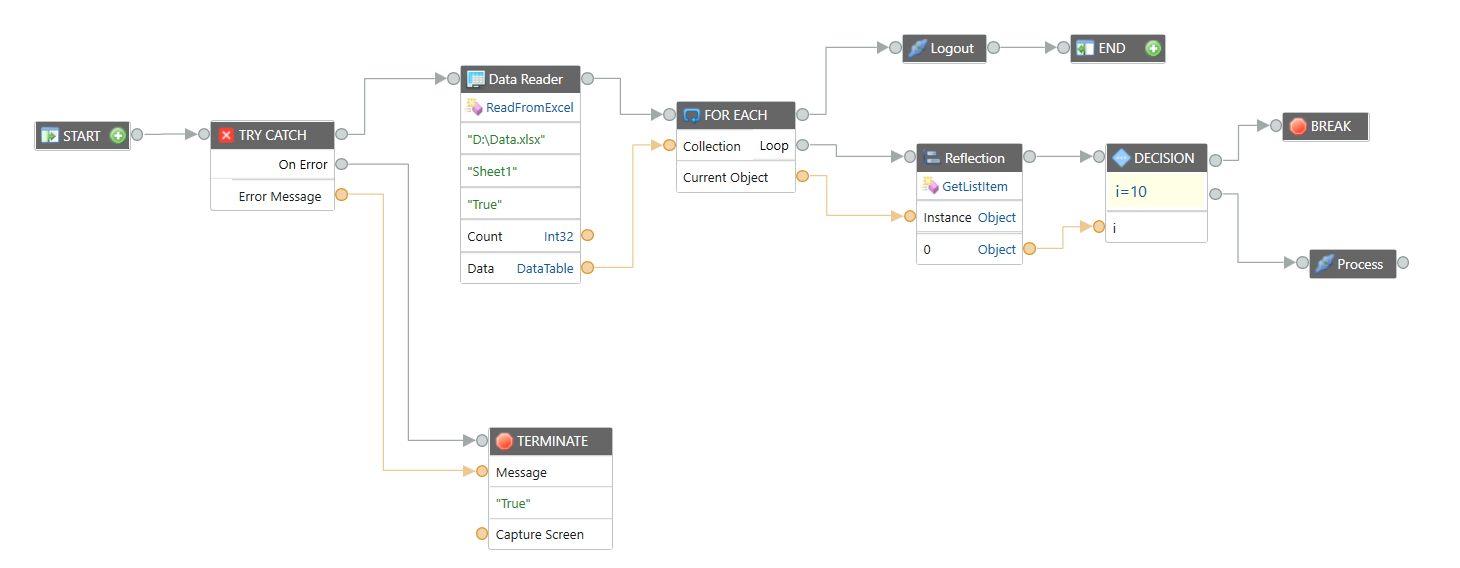

   • Use Automation Designer to create bots by recording UI actions.
   • Define steps such as clicking buttons, extracting data, or typing input.
4. Trigger Bots from Flow Designer:
   • Use the RPA Action in Flow Designer to call bots when needed (e.g., after an incident is logged).
5. Monitor Execution:
   • Use the RPA Hub Dashboard to track bot status, logs, and results.

‍

Common Pitfalls and How to Avoid Them

‍

‍

Best Practices

• Centralize Logic: Reuse subflows and Script Includes to avoid redundancy.
• Name Consistently: Use meaningful naming for flows and rules.
• Document Everything: Maintain clear descriptions and comments in scripts.
• Monitor Performance: Use the Performance Dashboard to track flow execution times.
• Secure Automation: Respect user roles and use GlideRecordSecure when needed.
• Community Insight: Engage with the ServiceNow Community for real-world examples, reusable patterns, and expert troubleshooting.

Conclusion

‍

Automation in ServiceNow isn’t just a feature; it’s a capability that can significantly improve your IT operations when implemented correctly. From Flow Designer’s no-code automation to script-based Business Rules and RPA for legacy systems, ServiceNow provides IT administrators with a comprehensive automation toolkit. By adopting automation thoughtfully, documenting your work, and adhering to best practices, you’ll streamline operations, boost SLAs, and reclaim time for strategic initiatives.
